Dinámica estructural entre la conformación abierta y cerrada del ca- nal KATP en células pancreáticas
Structural dynamics between the open and closed conformations of the KATP channel in pancre- atic cells
BALLON PAUCARA WENDY GUADALUPE1 GRADOS-TORREZ RICARDO ENRIQUE1*
FECHA DE RECEPCIÓN: 22 SEPTIEMBRE 2020 FECHA DE ACEPTACIÓN: 12 OCTUBRE DE 2020
Resumen
Introducción: El canal de Potasio sensi- ble a ATP (canal KATP) regula la producción de Insulina por células β pancreáticas. La Gli- benclamida (GBM) (fármaco antidiabético) y el ATP actúan como inhibidores de este canal, mientras que el ADP lo activa. El canal KATP es un octámero constituido por 4 subunida- des centrales Kir6.2 que forman el poro y 4 subunidades externas de regulación SUR1.
Objetivo: Determinar la dinámica estruc-
tural entre las conformaciones abierta y ce- rrada del canal KATP en células pancreáticas.
Método: Análisis estructural compara-
IIntroduction: The ATP-sensitive Potassium channel (KATP channel) regulates insulin produc- tion by pancreatic β cells. Glibenclamide (GBM) (antidiabetic drug) and ATP act as inhibitors of this channel, while ADP activates it. The KATP channel is an octamer consisting of 4 central Kir6.2 sub- units that form the pore and 4 external regulation subunits SUR1.
Objective: To determine the structural dy- namics between the open and closed conforma- tions of the KATP channel in pancreatic cells.
Method: Comparative structural analysis of different crystallographic structures of the KATP
1. AREA DE FARMACOLOGÍA, INSTITUTO DE INVESTIGACIONES FÁRMACO BIOQUÍMICAS ”LUIS ENRIQUE TERRAZAS SILES”. UNIVERSIDAD MAYOR DE SAN ANDRÉS, AV. SAAVEDRA 2224. LA PAZ,
BOLIVIA.
* AUTHOR FOR CORRESPONDENCE WENDY GUADALUPE BALLON PAUCARA
LICENCIADA EN BIOQUÍMICA. UNIDAD DE BIOQUÍMICA CLÍNICA, ÁREA DE FARMACOLOGÍA. INSTITUTO DE INVESTIGACIONES FÁRMACO BIOQUÍMICAS “LUIS ENRIQUE TERRAZAS SILES”. FACULTAD
DE CIENCIAS FARMACÉUTICAS Y BIOQUÍMICAS. UNIVERSIDAD MAYOR DE SAN ANDRÉS. ORCID: HTTPS://ORCID.ORG/0000-0001-8088-8000
E-MAIL: WEN.BALLON.WEN@GMAIL.COM
PRINCIPAL AUTHOR
RICARDO ENRIQUE GRADOS TORREZ (AUTHOR FOR CORRESPONDENCE).
PHD EN BIOTECNOLOGÍA, MSC. EN BIOTECNOLOGÍA MOLECULAR, LIC. EN BIOQUÍMICA. ÁREA DE FARMACOLOGÍA, INSTITUTO DE INVESTIGACIONES FÁRMACO BIOQUÍMICAS (I.I.F.B.) ”LUIS ENRIQUE TERRAZAS SILES”. UNIVERSIDAD MAYOR DE SAN ANDRÉS, AV. SAAVEDRA 2224. LA PAZ, BOLIVIA. ORCID: HTTPS://ORCID.ORG/0000-0001-7287-2586
E-MAIL: RIC.GRADOS@GMAIL.COM CEL. 65192791
Ballon, W. y Col
tivo de diferentes estructuras cristalográficas del canal KATP de células pancreáticas huma- nas empleando el software Chimera v1.11.2.
Resultados: La subunidad Kir6.2 presenta un
dominio de unión a PIP2 (activador), una Hélice In- terfacial (IFH) y un dominio N-terminal (KNtp). Por otro lado, la subunidad SUR1 que contiene el sitio de unión a la GBM, tiene 2 Dominios de Unión a Nucleótidos (NBD1/2), un bucle M5-Lh1 y un Mo- tivo de Lazo formado por la interface entre el Do- minio Trans-membrana 0 y el Bucle 0 (TMD0-L0). Los resultados del análisis dinámico estructural mediante herramientas bioinformáticas, indican que estas regiones participan activamente en los cambios conformacionales que dan lugar al cierre (inhibición) o apertura (activación) de este canal.
Conclusión: El estudio de la dinámica de
activación e inhibición de los canales KATP es imprescindible para la evaluación, descubri- miento y/o diseño de nuevos compuestos na- turales, que como la GBM, puedan promover la secreción de Insulina para coadyuvar o me- jorar el tratamiento de pacientes diabéticos.
PALABRAS CLAVE
CANAL KATP, DINÁMICA ESTRUCTU- RAL, KIR6.2, SUR1, GLIBENCLAMIDA, ATP Y ADP.
INTRODUCCIÓN
channel of human pancreatic cells using Chime- ra v1.11.2.
Results: The Kir6.2 subunit has a PIP2 bind- ing domain (activator), an Interfacial Helix (IFH) and an N-terminal domain (KNtp). On the other hand, the SUR1 subunit that contains the GBM binding site, has 2 Nucleotide Bind- ing Domains (NBD1/2), an M5-Lh1 loop and a Lasso Motif formed by the interface between the Trans-membrane Domain 0 and Loop 0 (TMD0-L0). The results of the dynamic structural analysis using bioinformatics tools indicate that these regions participate actively in the confor- mational changes that lead to the closure (inhi- bition) or opening (activation) of this channel.
Conclusion: The study of the dynamics of activation and inhibition of the KATP channels is essential for the evaluation, discovery and/or design of new natural compounds, which like GBM, can promote insulin secretion to aid or improve the treatment of diabetic patients.
Key words: KATP Channel, Structural Dy- namics, Kir6.2, SUR1, Glibenclamide, ATP and ADP.
KEY WORDS
KATP CHANNEL, STRUCTURAL DY NAMICS, KIR6.2, SUR1, GLIBEN CLAMIDE, ATP AND ADP.
LInsulin controls the concentration of Glucose in the blood. When this concentration is high, a group of pancreatic β cells release this hormone. In these cells, the amount of sugar in the blood modifies the ATP/ADP ratio and a membrane protein called ATP-sensitive Potassium channel (KATP channel) acts as a switch that activates or deactivates the production of Insulin. ATP and ADP control this switch, since both have opposite effects on this channel (ATP act as inhibitor and ADP as activator) (Aittoniemi et al., 2009), therefore, their action is coupled with the release of Insulin (Aguilar-Bryan et al., 2001; Ashcroft, 2005). However, it is not yet clear how KATP channels detect chan- ges in the ATP/ADP ratio in these cells, and because ATP levels are usually high and constant, ATP is continuously deactivating these channels while it is still unclear how ADP activates those (Lee et al., 2017). On the other hand, Glibenclamide (GBM), sulfonylurea used in the conventional treatment of Type 2 Diabetes Mellitus (T2DM), also inhibits KATP channels promoting Insulin secretion. Understanding the conformational changes that occur in
Dinámica estructural entre la conformación abierta y cerrada del canal KATP en células pancreáticas
the KATP channel is important for the discovery of new natural compounds that promote Insulin secretion in patients with T2DM.
Structure of KATP channel
Functional KATP channels are membrane proteins that have a hetero-oc- tameric structure composed of four Internal Rectification Subunits (Kir6.2) that close in depolarization maintaining the membrane potential and four Sulfonylurea Receptor Subunits (SUR1) members of the ABCC family (ATP Binding Cassette, subfamily C) (Lee et al., 2017) (Figure 1A and B), with a total of 80 trans-membrane helices (3 helices for each Kir6.2 subunit and 17 heli- ces for each SUR1 subunit) (Figure 1C) and with a total molecular weight of about 880 kDa (Li et al., 2017; Martin et al., 2017b). The KATP channel pore is made up of Kir6.2 subunits that act as ATP sensors and their activity is regu- lated by PIP2. The SUR1 subunits mediate the activating effect of ADP-Mg2+ and determine the pharmacological profile of the channel (Wu et al., 2018). It should be noted that the KATP channels have different combinations of subunits and different pharmacological profiles in different tissues, but the specific KATP channels of pancreatic β cells are mainly composed of Kir6.2 and SUR1 subunits and are highly sensitive to anti diabetic drugs such as GBM (Ashcroft, 2005; Martin et al., 2019).

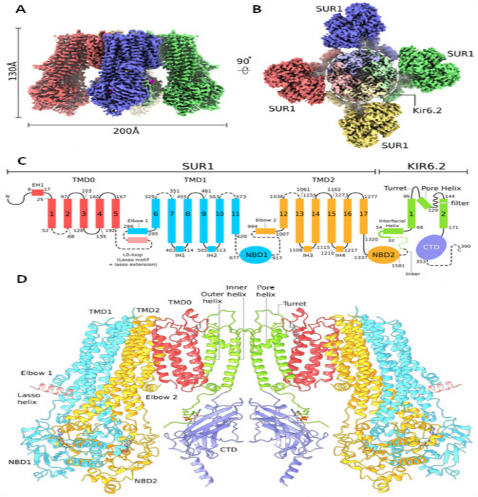

Figure 1. Three-dimensional structure of the KATP channel from an electronic density map. A. Side view. The outer subunits SUR1 are observed.
B. Cytoplasmic view. The four external SUR1 subunits (blue, green, red and yellow) and the central channel formed by four Kir6.2 subunits are observed.
regions whose density was not observed in the active (open) form, as in the case of the Lasso motif. D. Architecture of the KATP channel. Representation of two SUR1-Kir6.2 protomers in their active form (Extracted from Lee et al., 2017).
Ballon, W. y Col
Kir6.2
The tetrameric structure of Kir6.2 subunits forms the channel itself and has two-layer architecture, a Trans-Membrane Domain (TMD) and a Globu- lar Cytosolic Domain (CTD) (Figure 2A). The TMD has three trans-membra- ne helices: the Pore Helix (PH), an Inner Helix (IH or M2) that connects to the CTD and one the Outer Helix (OH or M1) that connects to the cytoplasm with a small Interfacial Helix (IFH) which has a final extension in the form of a βA-IFH loop (Figure 1C and D), this loop is connected to the N-terminal region (KNtp) which is highly dynamic (Li et al., 2017).

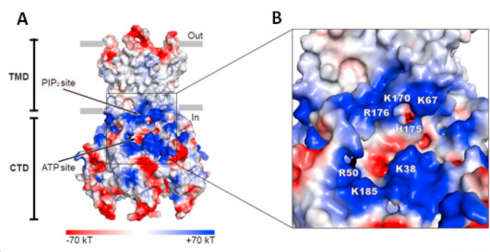

Figure 2. Structure of the Kir6.2 tetrameric channel. A. Representation of the calculated surface electrostatic potentials for the Kir6.2 channel. B. Clo- se-up view of the binding sites for ATP and PIP2. Residues that form positive charges are named in one letter code (Extracted from Li et al., 2017).
Dinámica estructural entre la conformación abierta y cerrada del canal KATP en células pancreáticas
The surface electrostatic potential shows two positively charged regions. The first consists of K67, K170, H175 and R176 which is known as the PIP2 binding site which is an activator of KATP channels (open the channel). The second region is formed by R50, K38 and K185 located near the cavity that accommodates the Adenosine group of ATP (ATP binding site) (Hansen et al., 2011) (Figure 2B).
SUR1

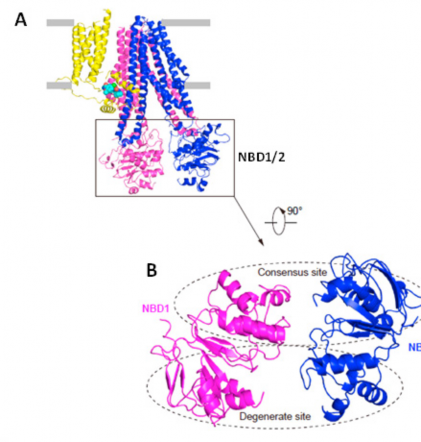

Figure 3. SUR1 structure. A. Side view of a SUR1 subunit. NBDs are boxed for magnification. B. Bottom view of NBDs from a catalytically inac- tive SUR1 subunit because NBD1 and NBD2 are separated (Extracted from
Ballon, W. y Col
Li et al., 2017).
METHOD
6baa: Crystallographic structure of KATP channel from pancreatic β cells bound to ATP and GBM, this structure was used for the analysis of the GBM binding site.
5ykf: Crystallographic structure of KATP channel from pancreatic β cells bound to ATPγS and GBM, this structure was used for the analysis of con- formational changes in SUR1 and the NBD1 and NBD2 domains when the channel is in its closed conformation.
5ywc: Crystallographic structure of the KATP channel from pancreatic β
cells bound to ADP-Mg2+, this structure was used for the analysis of con-
Dinámica estructural entre la conformación abierta y cerrada del canal KATP en células pancreáticas
formational changes in SUR1 and the NBD1 and NBD2 domains when the channel is in its open conformation.
All the structures were analyzed, evaluated and modeled using Chimera v1.11.2 software. Superposition and structural alignments were made using the Match Maker tool with Iteration no greater than 2 Å.
Binding site of GBM
The chemical structure of GBM (Figure 4A) allows it to interact to the SUR1 subunit between the TMD1 and TMD2 domains in the KATP channel (Figure 4B). The amino acids involved in this interaction are mainly aroma- tic and hydrophobic such as Y377, P434, L434 and L592 and form hydrogen bonds between R1246/N1245 and -SO2/-NH- (Figure 4C).

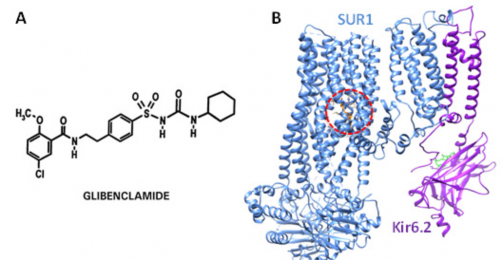

Figure 4. Structural analysis of the Glibenclamide (GBM) binding site to the KATP channel. A. Chemical structure of GBM. B. Hetero-dimeric fraction SUR1-Kir6.2 (blue-purple) of the KATP channel bound with GBM (orange) and ATP-Mg+2 (green). The GBM binding site (red circle) is observed be- tween TMD1 and TMD2 of SUR1. C. Important amino acids that participate in the interaction of the GBM with SUR1 (one letter code). Hydrogen brid- ges are seen as yellow lines (Modeled from PDB: 6BBA)
Ballon, W. y Col
-747-1-10-20210817/Image_020.png)
NBD1-NBD2 dimerization
Binding of GBM (with SUR1) and ATP (with NBD1) keeps the NBD1 and NBD2 domains (located at TMD1 and TMD2, respectively) in a separate con- figuration (~13.2 Å apart) corresponding to a closed or inactive KATP chan- nel (Figure 5A). In contrast, binding of ADP to NBD1 and NBD2 promotes its dimerization, with both domains closest to each other (~6.1 Å apart) which is characteristic of an open or active KATP channel (Figure 5B).

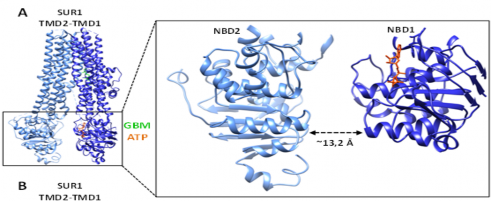

Figure 5. Structural comparison of TMD1-TMD2 of SUR1. A. Complex with GBM (green) and ATP (orange), a distance between NBD1 and NBD2 of ~13.2 Å is observed maintaining a separate configuration corresponding to a closed or inactive KATP channel. B. Complex with ADP (red), a distance between NBD1 and NBD2 of ~ 6.1 Å is observed, corresponding to a charac- teristic dimeric configuration of an open or active KATP channel (Modeled from PDB: 5YKF and 5YWC).
Dinámica estructural entre la conformación abierta y cerrada del canal KATP en células pancreáticas
The superposition of the structures of NBD1 and NBD2 indicates an evi- dent conformational change induced by the binding of GBM/ATP or ADP (Figure 6).

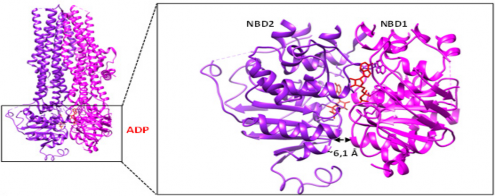

Figura 6. Structural superposition of NBD1 and NBD2 from SUR1 in their separate inactive form (light blue and blue) and dimeric active form (purple and magenta). ATP (orange), ADP (red).
Occlusion of GBM binding site
After dimerization of NBD1 and NBD2 by the binding of ADP, a confor- mational change in SUR1 results in the narrowing of the GBM binding site, primarily by rotation of the Y377 and P433 residues (Figure 7), which main- tains the KATP channel in its active or open configuration.

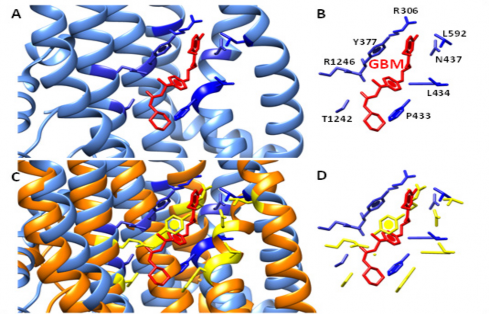

Figure 7. A. Structure of the GBM (red) binding site in a closed KATP channel (light blue). B. Superposition with the structure of the GBM binding
Ballon, W. y Col
site in an open KAPT channel (orange). Amino acids involved in binding to GBM are seen in blue and yellow, closed and open configurations respecti- vely.
Binding site of PIP2 is blocked
The binding of GBM to SUR1 induces a conformational change in the M5- Lh1 loop (S55, S56, K57 and V58) of TMD1-SUR1 acquiring a configuration that blocks the PIP2 binding site located in Kir6.2 (Figure 8).

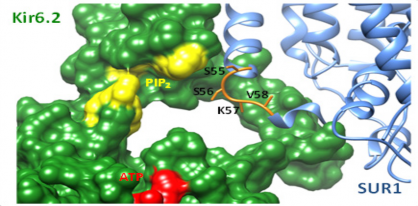

Figure 8. Interface between the SUR1 M5-Lh1 loop (orange loop) and the PIP2 binding site at Kir6.2 (region in yellow). The ATP binding region of Kir6.2 is also observed (region in red). The Kir6.2 and SUR1 subunit appear in green and light blue, respectively (Modeled from PDB: 6PZA and 5YKF)
Dinámica estructural entre la conformación abierta y cerrada del canal KATP en células pancreáticas
Role of KNtp in the activation of KATP channel
The N-terminal region of Kir6.2 (KNtp) interacts inside SUR1 very close to the GBM binding site (Figure 9A). Apparently, this interaction stabilizes the structure of the KATP channel in a closed (or inactive) configuration (Figure 9B), whereas, the dimerization of NBD1 and NBD2 (located in TMD1 and 2 of SUR1, respectively) after ADP binding, it causes a conformational change in SUR1 that is incompatible with the stabilizing interaction of KNtp and the binding of GBM in SUR1 (Figure 9C) causing the opening of the KATP channel.

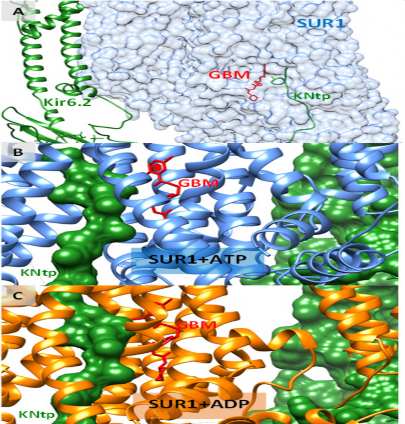

Figure 9. Interaction scheme of KNtp (N-term of Kir6.2) with SUR1. A. KNtp (Green loop) interacts with SUR1 (Blue) in a region very close to the GBM binding site (Red). B. KNtp interaction with the SUR1 structure of a KATP channel bound to GBM (Blue closed configuration). KNtp stabilizes this configuration together with the GBM. C. KNtp interaction with the SUR1 structure of a KATP channel bound to ADP (Orange open configuration). In this open configuration a conformational change occurs in SUR1 alters not only the GBM binding site but also the KNtp binding (Modeled from PDB: 6PZA, 5YKF and 5YWC).
Ballon, W. y Col
L0 and IFH communicate SUR1 with Kir6.2
The L0 loop present in the TMD0 of SUR1 in its inactive state (closed KATP channel) acquires a configuration that allows it to interact with the Kir6.2 IFH (Interface Loop) (Figure 10). This interaction probably promotes the Kir6.2 subunits (which shape the KATP channel pore) to acquire a closed configuration.

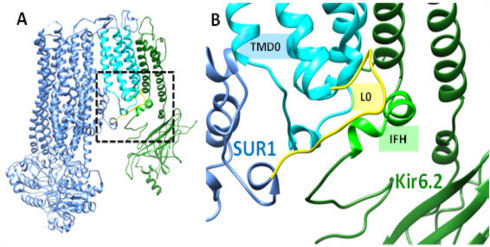

Figure 10. Interaction scheme between L0 and IFH. A. Structure of SUR1 (blue) with TMD0 (light blue) and Kir6.2 (dark green). B. Close-up view of the box in A. The interaction of L0 (yellow) with IFS (light green) is highli- ghted. The SUR1-TMD0_L0 structure corresponds to a closed KATP chan- nel while the Kir6.2-IFH structure corresponds to an open KATP channel. It is observed that the conformational changes of SUR1 could be transferred to Kir6.2 through the interaction between L0 and IFH (Modeled from PDB: 6PZA and 5YWC)
DISCUSSION
GBM is located in the interface between TMD0-L0 and TMD1-TMD2 ac- ting as a wedge to stabilize the SUR1 structure in an inactive or closed con- formation (with NBD1 and 2 separated) and also stabilizing the TMD0-L0 fragment in a conformation that could inhibit the opening of Kir6.2 (Li et al., 2017). A comparative study points out that in the presence of GBM and ATP-Mg2+ both the internal and external helices of the Kir6.2 TMD move inward giving rise to a channel with a narrow and closed helix input (channel inactive or closed).
All Kir6.2 residues that interact with SUR1 are located primarily before the helical structures that make up the pore of the KATP channel, the Kir6.2
Dinámica estructural entre la conformación abierta y cerrada del canal KATP en células pancreáticas
fragments composed of the outer helices such as IFH and the N-terminal region (KNtp) they are sufficient to interact with SUR1. The Lasso Motif (pre- sent in the L0 interface) could act as a region that communicates the signal sent by the SUR1 regulatory subunits to the Kir6.2 subunits that are the ones that make up the channel per se, since in closed conformation, this motif interacts with IFH (Kir6.2 Interfacial Loop) possibly promoting a conforma- tional change that results in the closure of the KATP channel. However, the Lasso Motif is only visible in the inactive (closed) but not in the active (open) configuration due to the low resolution and low electron density obtained in the crystallographic structures and the great mobility that this region has (Martin et al., 2019). Other studies indicate that when the KATP channel is in its active (open) form (called the "quatrefoil" state), the Lasso Motif acquires a disordered configuration representing a decoupled state between SUR1 and Kir6.2, in which the conformational change of SUR1 cannot be transfe- rred to Kir6.2 or vice versa (Lee et al., 2017).
Other studies based on the microscopic technique of reconstruction of molecules on an atomic scale (Lee et al., 2017), allowed obtaining 3D recons- truction maps for the KATP channel of human pancreatic cells. The maps show that these channels have binding sites for ATP and ADP. The ADP bin- ding site acts as a sensor that can detect small changes in cellular levels of ADP. In addition, a dynamic Loop-like structure was revealed that connects the ATP and ADP junction areas, this Motif plays an important role allowing the increase in ADP to cancel the action that ATP has on the KATP channel (since ADP and ATP have opposite effects). The presence of an ADP sensor and the Lasso Motif could explain how KATP channels monitor changes in the ATP/ADP ratio and can therefore control the release of Insulin based on blood Glucose levels. Genetic defects in the functioning of the KATP chan- nels of the pancreas can cause many diseases (Nichols, 2006; Quan et al., 2011). Understanding the structure and function of these channels is essen- tial for the discovery, analysis, or design of new drugs that serve to comple- ment or improve the treatment of diseases such as T2DM.
CONCLUSION
The results obtained from the comparison of different crystallographic structures of the KATP channel from human pancreatic cells, support the activation model proposed by Wu et al., 2018, in which both GMB and KNtp (N-terminal Kir6.2) bind cooperatively within the SUR1 subunit and inhibit activation (opening) of the KATP channel, while ATP may be linked to NBD1 (degenerate site) but with separate NBD1/2 domains. In turn, the M5-Lh1 loop of SUR1 blocks the PIP2 binding site (which is a KATP channel activa- tor) located at Kir6.2. When the ADP concentration increases, it first binds to NBD2 (consensus site) inducing a conformational change and increasing the
Ballon, W. y Col
